24V Large 360 LED Cabochon – Multi-Directional LED Display Light
Bring versatile LED illumination to signs, marquees, architectural displays, carnival rides, and decorative installations with this large 24V 360 LED Cabochon. Its cabochon design emits light from both the top and bottom, providing multi-directional illumination that can be viewed from different angles. Available in multiple colors and white color temperatures, it offers flexibility for a wide range of display applications.
Constructed from durable polycarbonate and rated IP66 for indoor and outdoor use, this cabochon is designed for long-term installations. A silicone seal helps prevent water from entering the channeling, while the ¾" mounting hole accommodates panels up to 5/16" thick. The integrated lighting pattern runs for approximately 2 minutes and 45 seconds before repeating, creating a continuously changing display effect.
PRODUCT FEATURES:
- Top Diameter: 1¾"
- Shaft Diameter: 23/32"
- Top Height: 13/16"
- Shaft Height: ⅞"
- Hole Size: ¾"
- Maximum Panel Thickness: 5/16"
- Compatible Wire Gauge: 12 AWG
- Material: Polycarbonate
- Life Expectancy: 50,000 hours
- IP Rating: IP66, indoor/outdoor
- Silicone Seal: Helps keep water out of channeling
- Light Direction: Emits light from both top and bottom
- White: 82 lumens, 7500K
- Warm White: 87 lumens, 3200K
- Red: 17 lumens
- Yellow: 89 lumens
- Green: 38 lumens
- Blue: 11 lumens
- Peak Power: 24VAC, 0.122A, 1.44W
- Average Power: 24VAC, 0.061A, 0.72W
- Dimmable: No
- Pattern Duration: 2 minutes 45 seconds before repeating
Key Features:
- 360-Degree Illumination: The cabochon emits light from both the top and bottom for multi-directional visibility.
- 24V Operation: Designed for 24VAC lighting systems with low power consumption.

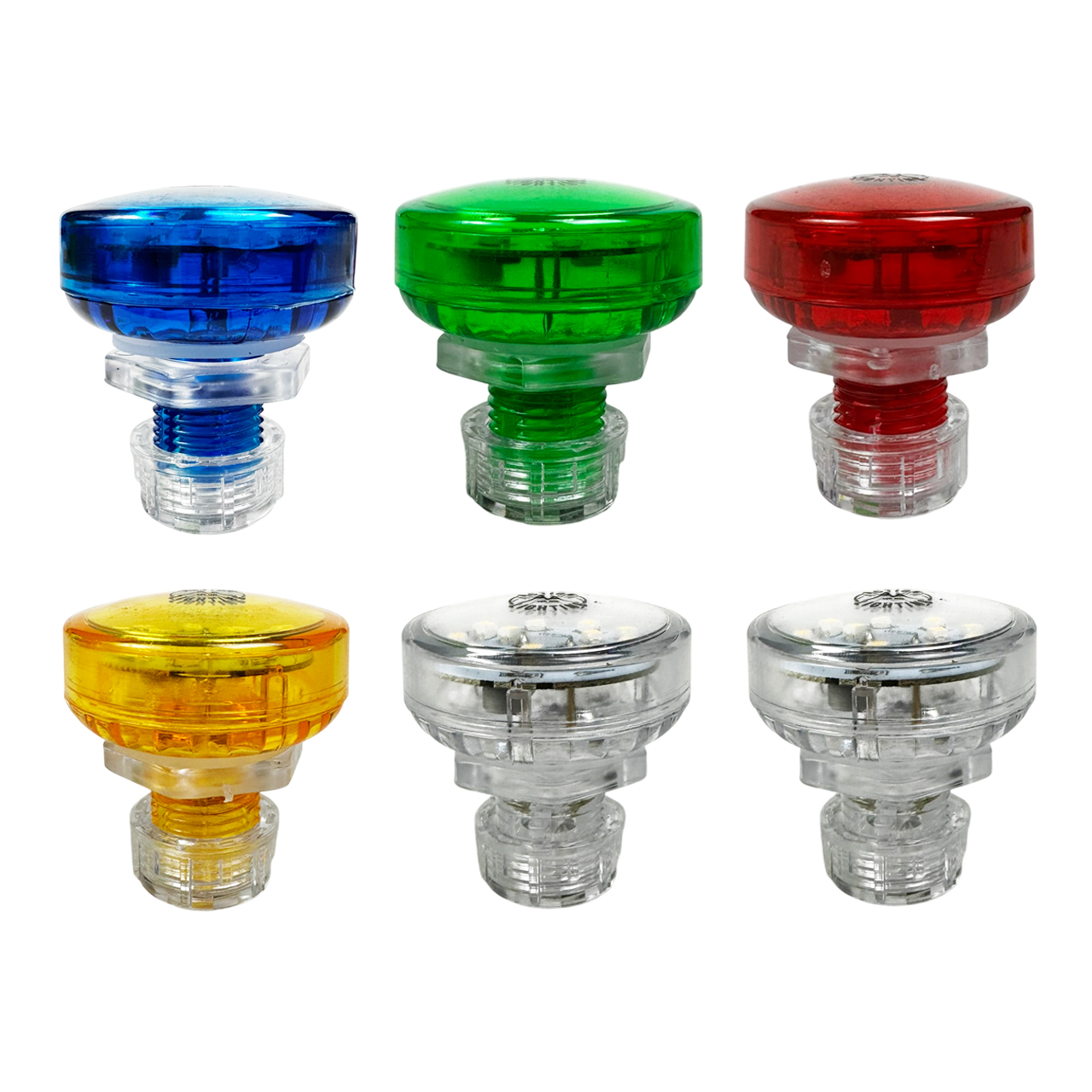

- Multiple Color Options: Available in white, warm white, red, yellow, green, and blue.
- High-Output Illumination: Produces up to 89 lumens depending on the selected color.
- Durable Polycarbonate Construction: Built for long-term use in demanding display and decorative lighting applications.
- IP66 Rated: Designed for indoor and outdoor installations with protection against dust and water exposure.
- Long 50,000-Hour Life: Provides extended operating life for permanent and seasonal displays.
- Built-In Water Protection: A silicone seal helps prevent water from entering the channeling.
- Repeating Light Pattern: The programmed pattern runs for approximately 2 minutes and 45 seconds before repeating.
Applications:
- Marquee Lighting: Add multi-directional illumination to signs and marquee displays.
- Carnival Rides: Create colorful lighting effects for amusement rides and attractions.
- Commercial Signage: Illuminate storefront signs, displays, and promotional installations.
- Architectural Lighting: Use for building outlines, accent features, and decorative structures.
- Event Displays: Suitable for stages, venues, and special-event installations.
- Outdoor Displays: IP66 construction makes the cabochon suitable for outdoor decorative applications.
Add durable, multi-directional LED illumination to your next display with this 24V 360 LED Cabochon, designed for long-lasting indoor and outdoor applications.
