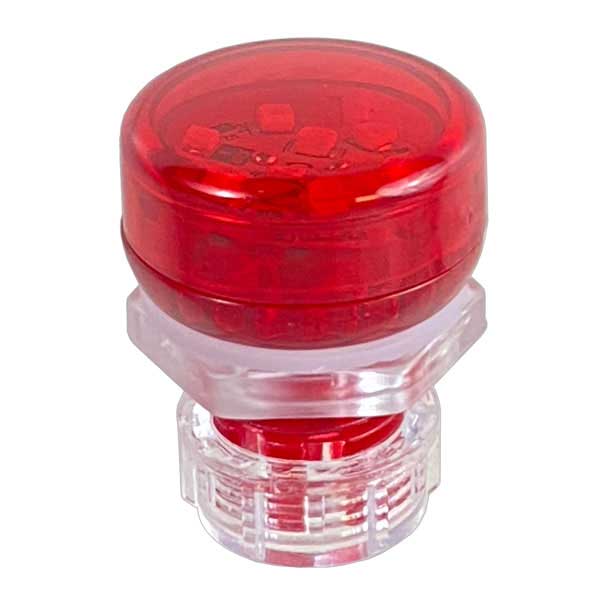

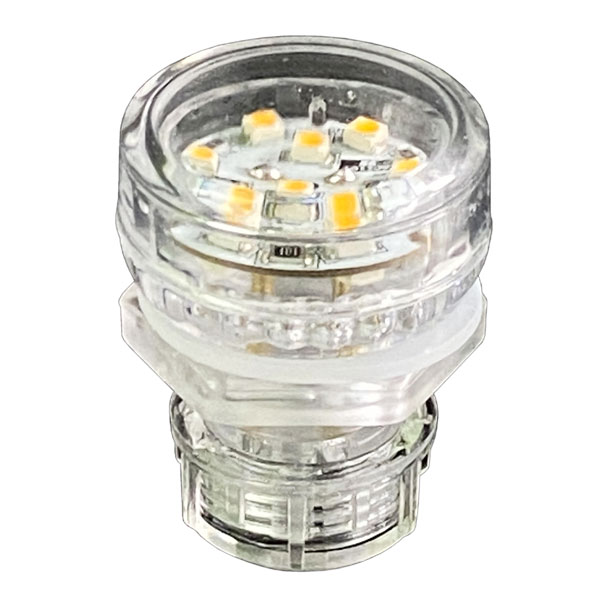

360 LED Cabochon Small – 120V or 24V – Multi-Directional LED Lighting
Add multi-directional LED illumination to signs, marquees, carnival rides, architectural displays, and decorative installations with the 360 LED Cabochon Small. Available in 120V and 24V versions, this compact cabochon-style light emits illumination from both the top and bottom to provide consistent visibility across the face and surrounding area of your display.
The 120V version features a compact E10 base and 12 SMD LEDs, while the 24V version uses a durable polycarbonate construction with an IP66 rating and a silicone seal to help keep water out of the channeling. The 24V model operates on 24VAC or 24VDC, making it a versatile option for low-voltage lighting applications, and can be dimmed for additional control.
PRODUCT FEATURES:

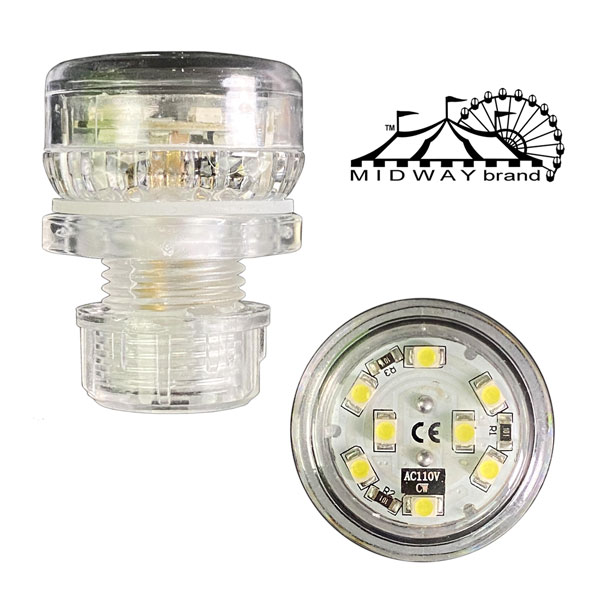

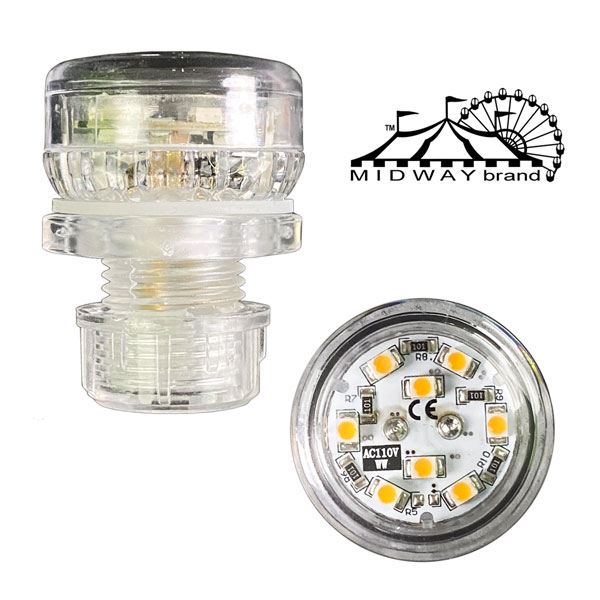

120V Version
- Sold individually

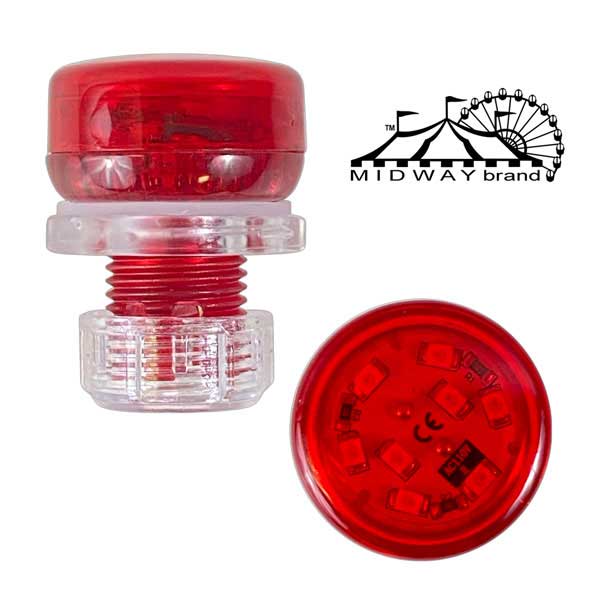

- Colors: Red, White, and Warm White
- Diameter: 35mm
- Hole size: 20mm / 0.75"
- Base: E10

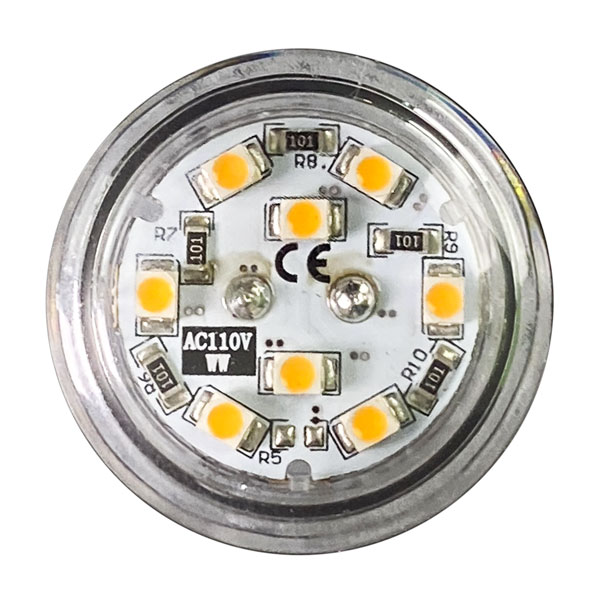

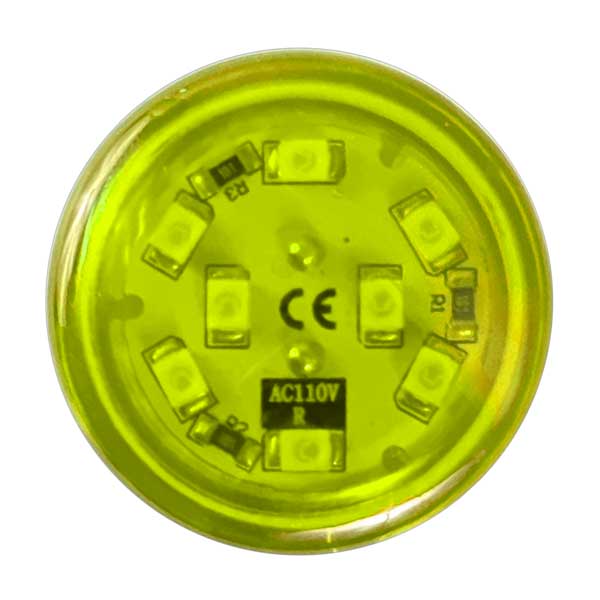

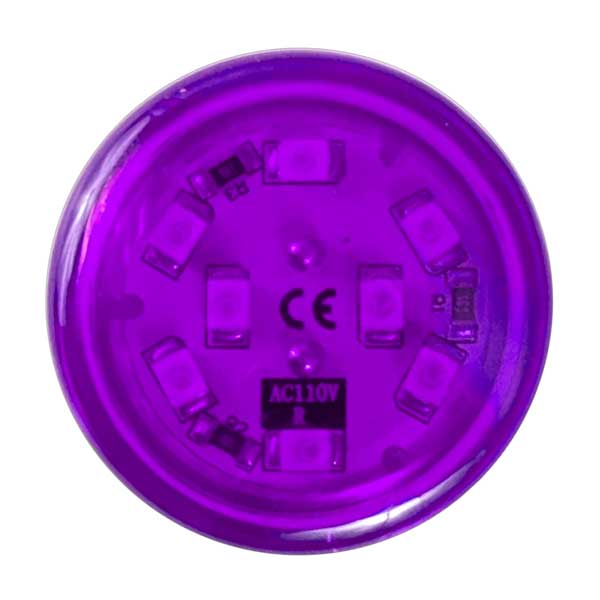

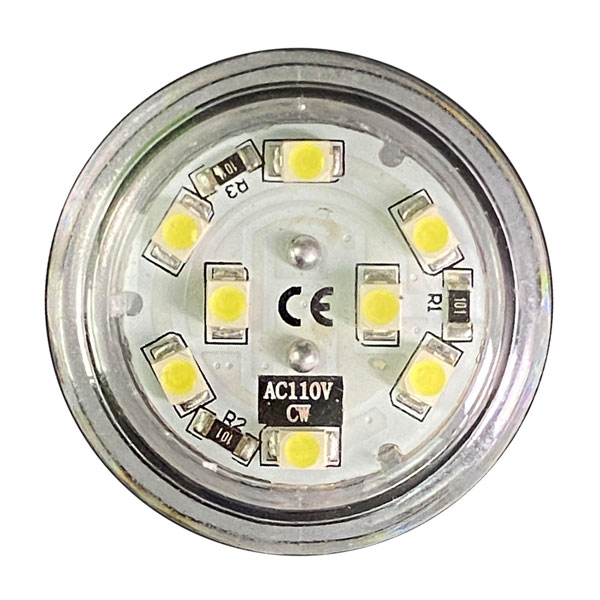

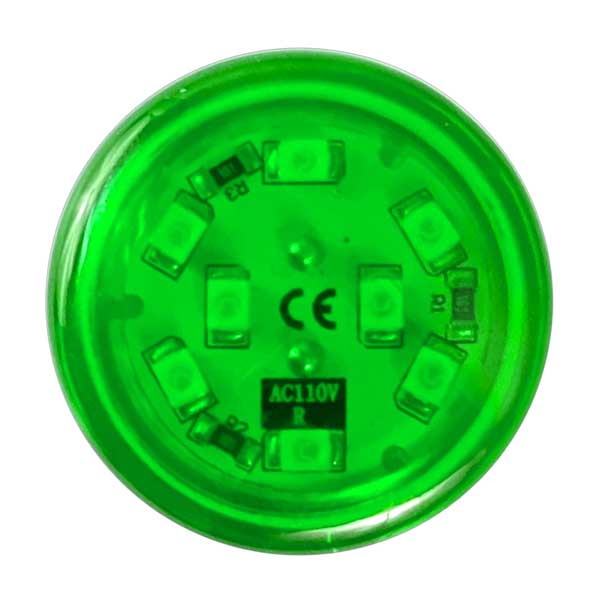

- 12 SMD LEDs per fixture: 8 on front and 4 on back
- Power supply: 120V, 0.025A, 1.1W
- Non-dimmable
- Life expectancy: 5+ years
- Rated for indoor/outdoor use
- Durable smooth color plastic cover
- Weatherproof and vibration resistant
- Energy efficient design
24V Version
- Top diameter: 1 5/16"
- Shaft diameter: 23/32"
- Top height: ¾"
- Shaft height: ⅞"
- Hole size: ¾"
- Maximum panel thickness: 5/16"
- Compatible wire gauge: 12 AWG
- Material: Polycarbonate
- Life expectancy: 50,000 hours
- IP66 rated for indoor/outdoor use
- Silicone seal helps keep water out of channeling
- Cabochon emits light from both top and bottom
- Power consumption: 24VAC, 0.043A, 1W
- Dimmable
- Can operate on 24VDC with approximately 50% reduction in power consumption and brightness
24V Optical Specifications
- White: 44 lumens, 7000K
- Warm White: 49 lumens, 3500K
- Red: 6.1 lumens
- Yellow: 48 lumens
- Green: 24 lumens
- Blue: 5.6 lumens
Key Features:
- Two Voltage Options: Available in 120V and 24V versions to accommodate different lighting system requirements.
- Multi-Directional Illumination: The cabochon design emits light from both the top and bottom for broad light coverage.
- Compact Design: Small footprint makes these bulbs suitable for signs, marquees, rides, and other display applications.
- Durable Construction: The 120V version uses a weather-resistant plastic cover, while the 24V version is constructed from polycarbonate.
- Outdoor Rated: Both versions are designed for indoor and outdoor applications, with the 24V model carrying an IP66 rating.
- 24V Dimmable Option: The 24V version can be dimmed for applications requiring adjustable light levels.
- 24V AC/DC Capability: The 24V version can operate on 24VAC or 24VDC. When operated on 24VDC, power consumption and brightness are reduced by approximately 50%.
- Long Service Life: The 24V version is rated for 50,000 hours, while the 120V version has a life expectancy of 5+ years.

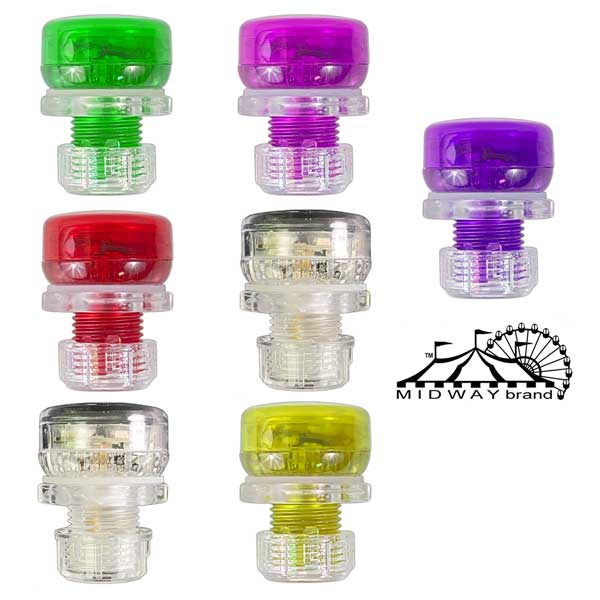

- Multiple Color Options: Available colors and color temperatures provide flexibility for decorative, commercial, and architectural displays.
Applications:
- Marquee Lighting: Add dazzling, multi-directional light to vintage displays.
- Carnival Rides: Enhance visibility with bright, eye-catching illumination.
- Architectural Highlights: Create vibrant light displays on building outlines.
- Commercial Signage: Draw attention to storefronts and promotional displays.
Choose the voltage and color option that fits your installation and add durable, multi-directional LED illumination with the 360 LED Cabochon Small.
