Overview

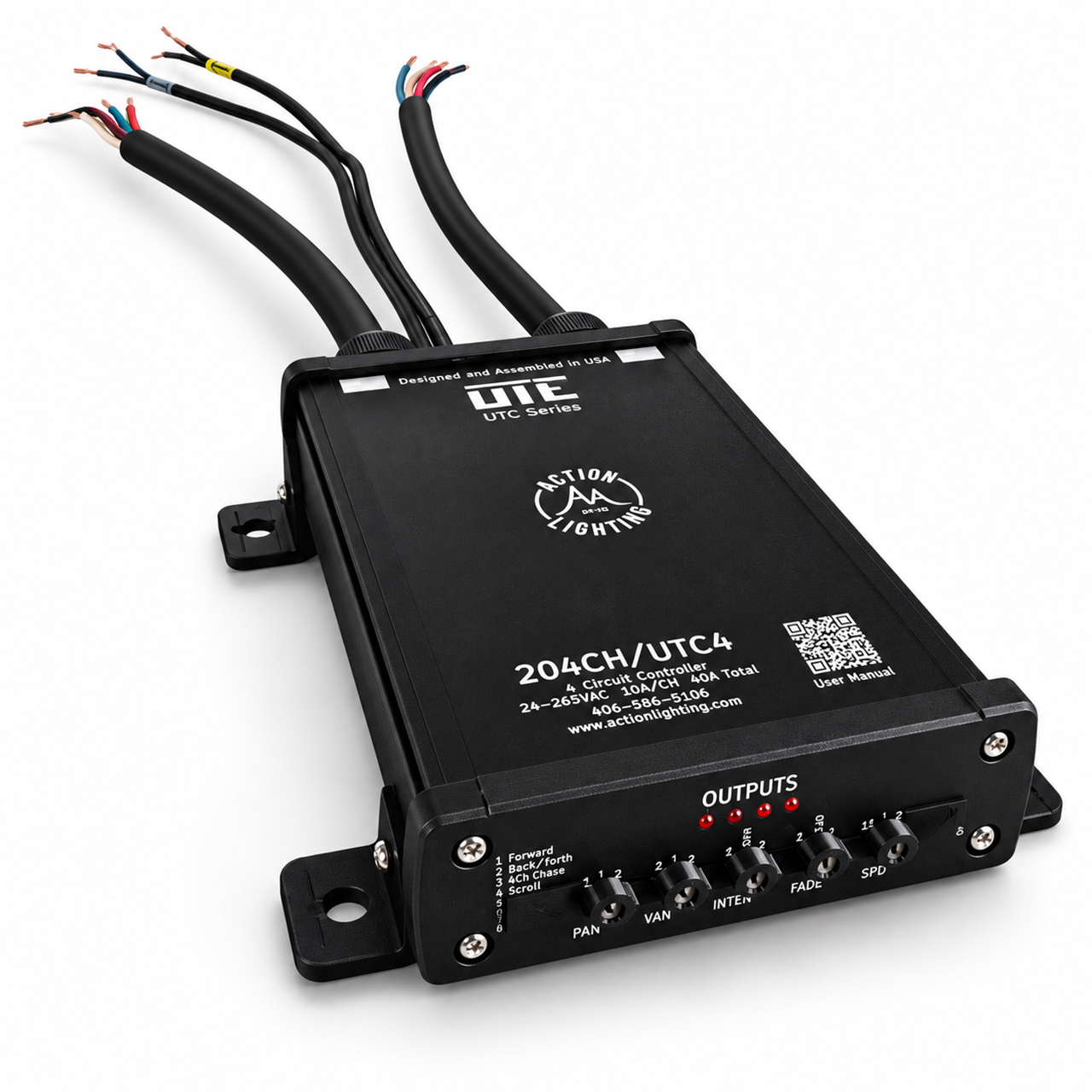

The 1-4 Circuit Universal Programmable Controller with DMX Adapter is a versatile lighting controller designed to provide independent control of up to four lighting circuits. With a universal 24-265 VAC power supply and a maximum combined capacity of 40 amps, this controller is suitable for a wide range of residential, commercial, and industrial lighting applications.
Built for flexibility and reliable operation, the controller features programmable lighting patterns including chases, scrolls, wipes, special effects, dimming, and user-programmable sequences. Its powder-coated aluminum housing is IP66 rated for indoor and outdoor use, while thermally protected circuitry and user-replaceable Triacs provide added durability and simplified maintenance. The controller also supports daisy chaining over distances of up to 5,800 feet, making it suitable for larger lighting installations.
PRODUCT FEATURES:
Dimensions

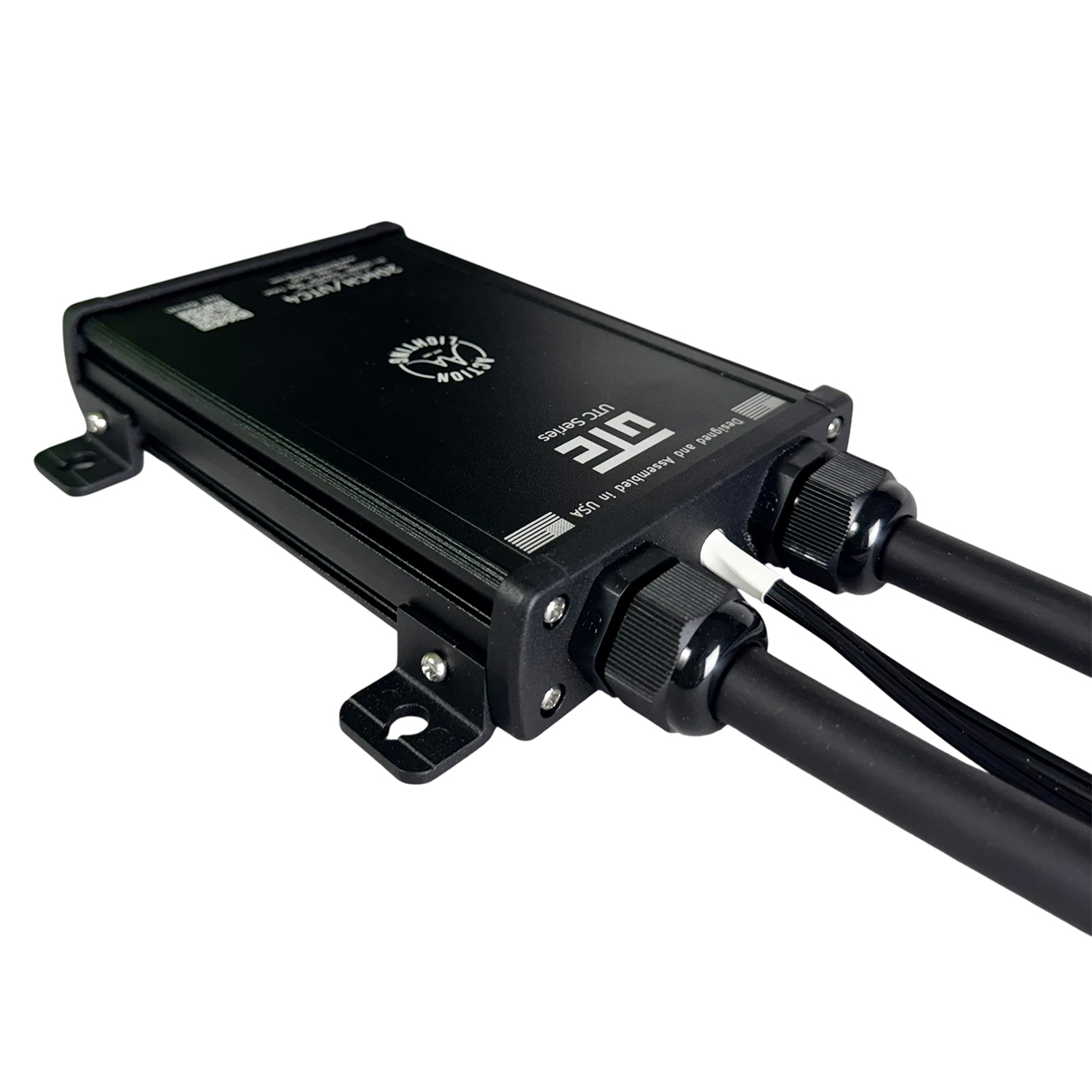

- Size: 8" x 5¾" x 1 7/16" including cable glands and knobs.
- Size: 6¾" x 5¾" x 1 7/16" for the box only.

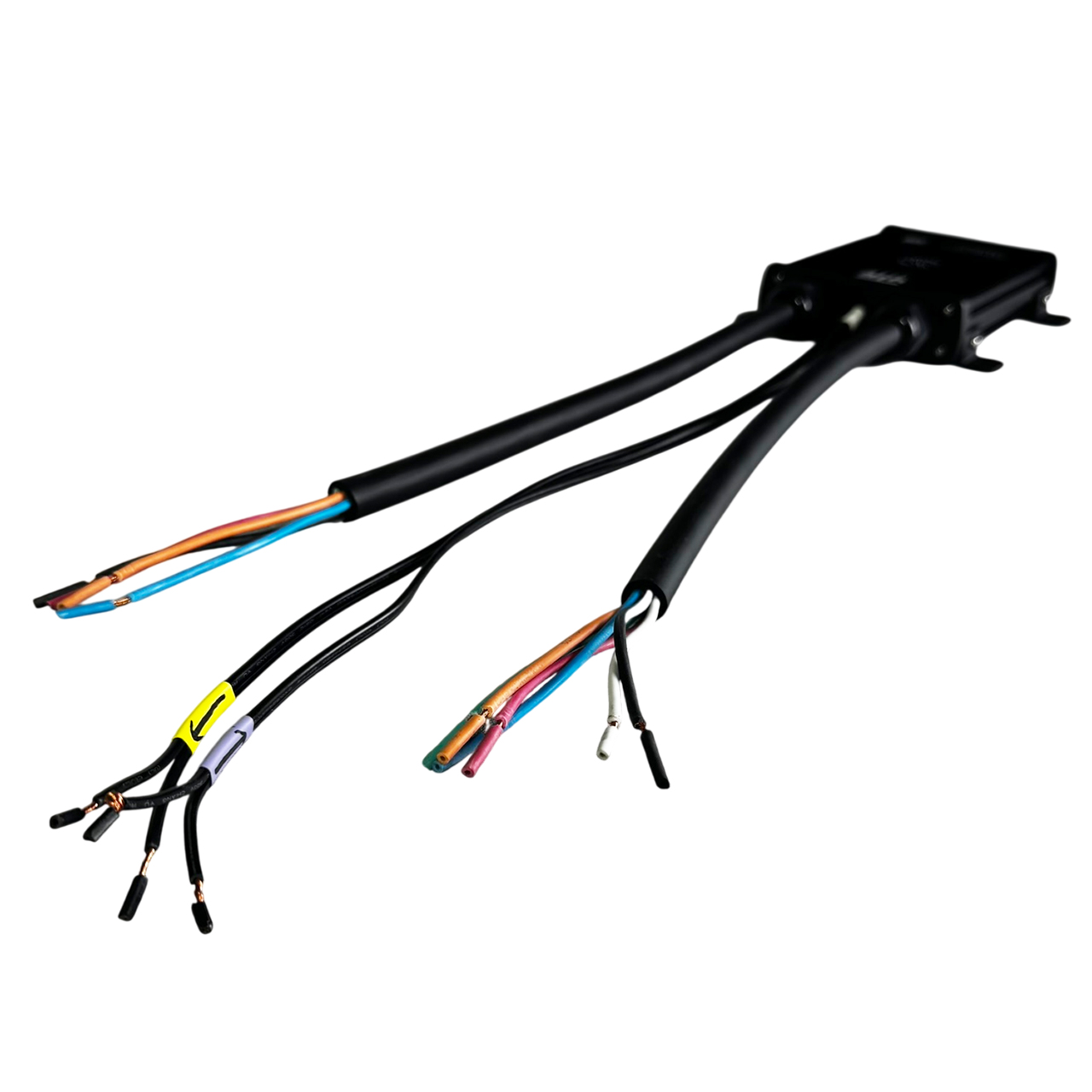

- Power/output cable length: 17".
- Daisy chaining cable length: 20".
Installation
- Mounting hole diameter: 9/32".
- Mounting hole spacing: 5" x 5 1/16".
Durability
- Material: Powder Coated Aluminum
- IP Rating: IP66 (Indoor / Outdoor)
- Thermally Protected
Electrical
- Power Supply: 24-265 VAC
- Maximum Current, Combined: 40 Amps
- Maximum Current, Per Circuit: 10 Amps
- Maximum daisy chain distance: 5,800 feet.
Other
- User-replaceable Triacs with no soldering required.

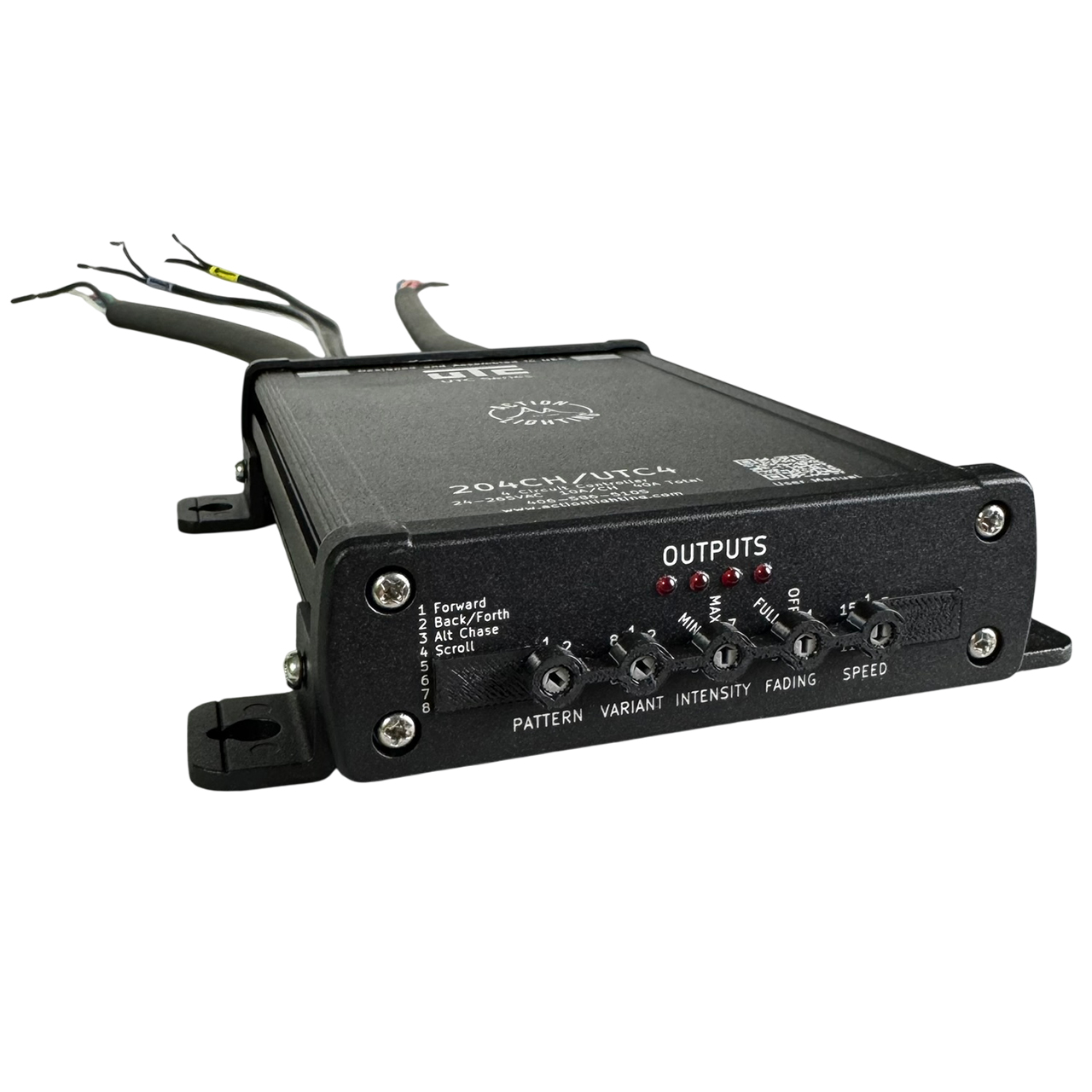

- Programmable patterns include chases, scrolls, wipes, special effects including fire, dimming, and user-programmable sequences.
- Designed and assembled in the USA.
- Includes support for DMX control through the DMX adapter.
- Click here to download the wiring instructions and user manual PDF document
Key Features
- 1-4 Circuit Control: Independently manage up to four lighting circuits for flexible control of multiple lighting zones.
- Universal 24-265 VAC Compatibility: Supports a broad range of AC power applications for residential, commercial, and industrial lighting.
- Programmable Lighting Patterns: Create chases, scrolls, wipes, fire effects, dimming sequences, and custom user-programmed patterns.
- DMX Compatibility: The DMX adapter allows the controller to integrate with compatible DMX lighting control systems.
- 40 Amp Combined Capacity: Handles up to 40 amps across all four circuits, with a maximum of 10 amps per circuit.
- Daisy Chain Capability: Supports daisy chaining across distances of up to 5,800 feet for larger lighting installations.
- User-Replaceable Triacs: Replace Triacs without soldering, simplifying maintenance and reducing service requirements.
- Durable Outdoor Construction: Powder-coated aluminum housing and IP66 protection provide durability for indoor and outdoor applications.
- Thermal Protection: Built-in thermal protection helps safeguard the controller during operation.
- Flexible Installation: Multiple mounting holes and extended power/output cables make installation straightforward.
Benefits
- Flexible Lighting Control: Independently control up to four circuits for customized lighting displays.
- Customizable Effects: Programmable patterns allow lighting displays to be tailored to specific events, installations, or applications.
- Reduced Maintenance: User-replaceable Triacs make servicing easier without requiring soldering.
- Large-Scale Capability: Long-distance daisy chaining allows multiple controllers to be connected across expansive lighting installations.
- Durable Performance: IP66 protection, a powder-coated aluminum enclosure, and thermal protection help the controller withstand demanding environments.
- DMX Integration: Provides a way to incorporate compatible lighting control equipment into a DMX-based system.
Usage Scenarios
The 1-4 Circuit Universal Programmable Controller with DMX Adapter is ideal for a wide range of applications, including:
- Holiday Lighting: Create programmable Christmas and seasonal lighting displays with multiple circuits and dynamic effects.
- Commercial Displays: Control lighting for retail locations, shopping centers, restaurants, and other commercial spaces.
- Large Outdoor Displays: Utilize the IP66-rated housing and long-distance daisy chaining for expansive outdoor lighting projects.
Compatibility
The 1-4 Circuit Universal Programmable Controller with DMX Adapter operates with 24-265 VAC power and supports up to 10 amps per circuit, with a 40-amp maximum combined load. Always verify the voltage, wattage, and load type of your lighting equipment before installation. Refer to the user manual for complete wiring, installation, and operating instructions.
