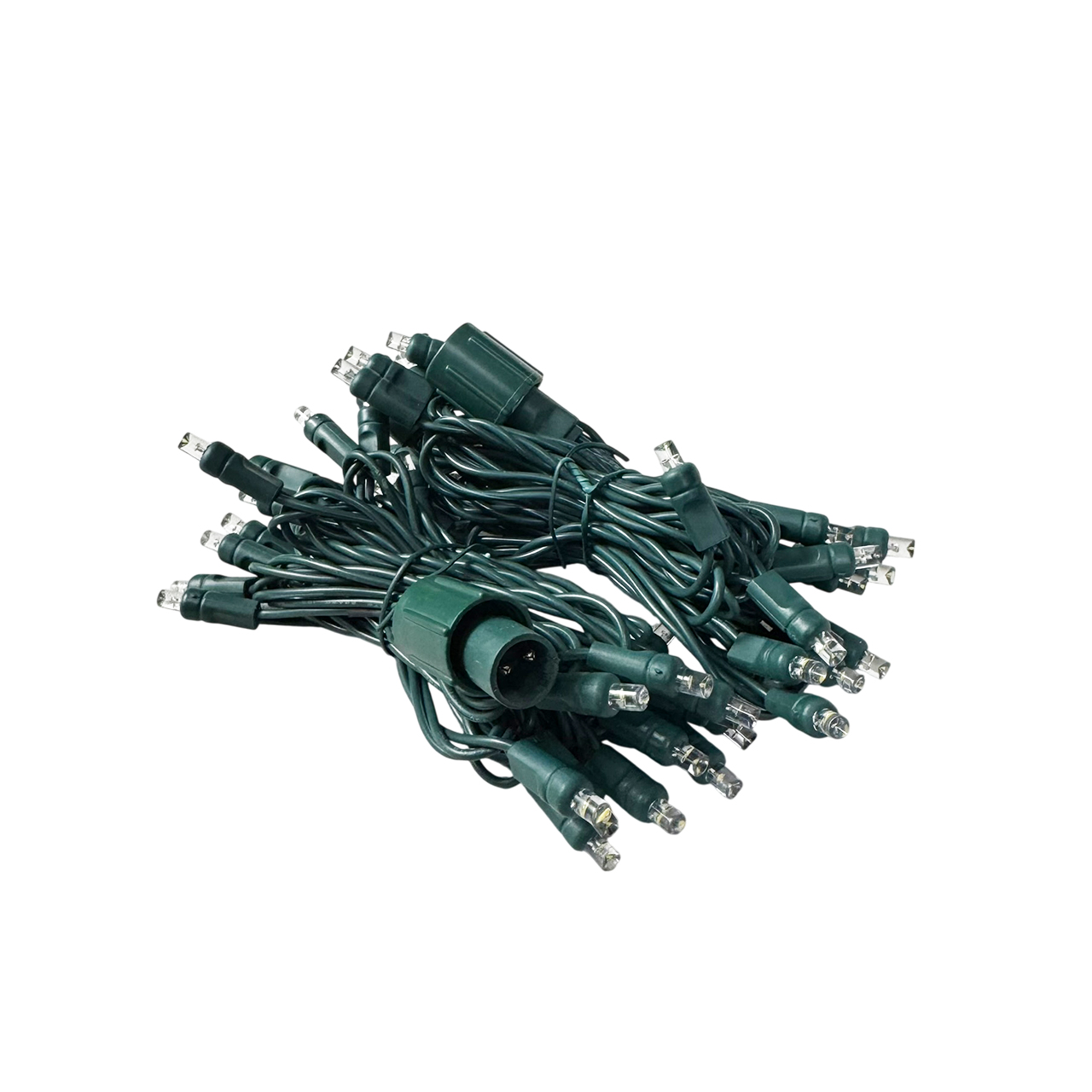

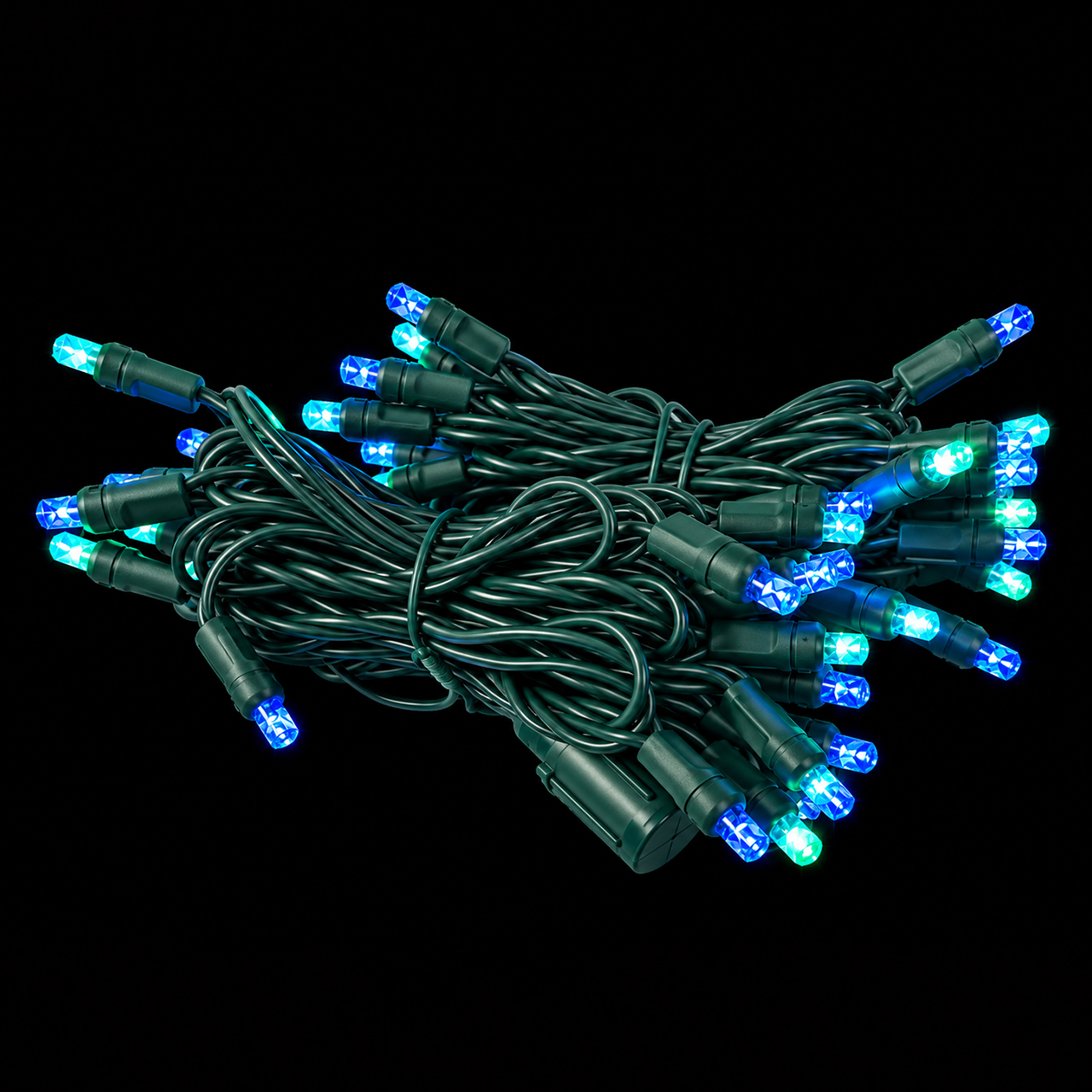

Wide Angle 5mm 50 RGBWW Light Sets – 20 Foot – Dynamic RGB + Warm White LED Lighting
Create customizable lighting displays with the Wide Angle 5mm 50 RGBWW Light Set, designed to combine red, green, blue, and warm white LEDs in one compact light string. Featuring 50 wide-angle 5mm bulbs spaced every 4 inches, this set provides 16' 6" of illuminated length and can be connected with additional sets for larger indoor or outdoor installations.
Overview
The RGBWW design gives you the flexibility to create colorful displays or add warm white illumination when a more traditional look is desired. Constructed with PVC-insulated wire and durable polycarbonate bulbs, the light set is rated IP66 for indoor and outdoor use and has an expected life of up to 50,000 hours lit or five outdoor seasons. A 100LEDWA504D-RGBWW Series Controller is required to operate the lights.
PRODUCT FEATURES:
Dimensions
- Bulb Size: 3/16” x ¼”
- 50 bulbs spaced every 4”
- Total Length: 17’ 3"
- Lighted Length: 16' 6"
Installation
- Maximum Run Length: 35 Pieces
- Not Cuttable
Durability
- Material: PVC insulated wire, Polycarbonate bulbs
- Life Expectancy: 50k hours lit or 5 seasons outdoors
- IP Rating: IP66 (indoor / outdoor)
Optical
- Brightness (Red LED): 0.7 lumens
- Brightness (Green LED): 0.53 lumens
- Brightness (Blue LED): 0.14 lumens
- Brightness (Warm White LED): 0.86 lumens
Electrical
- Power Consumption (Max): 130V, 0.03 Amps, 3.9 Watts
- Wire Gauge: 22 AWG
Other
- 100LEDWA504D-RGBWW Series Controller required
- Our 215BOX Weatherproof Box can be used to keep the connectors perfectly dry.
Key Features

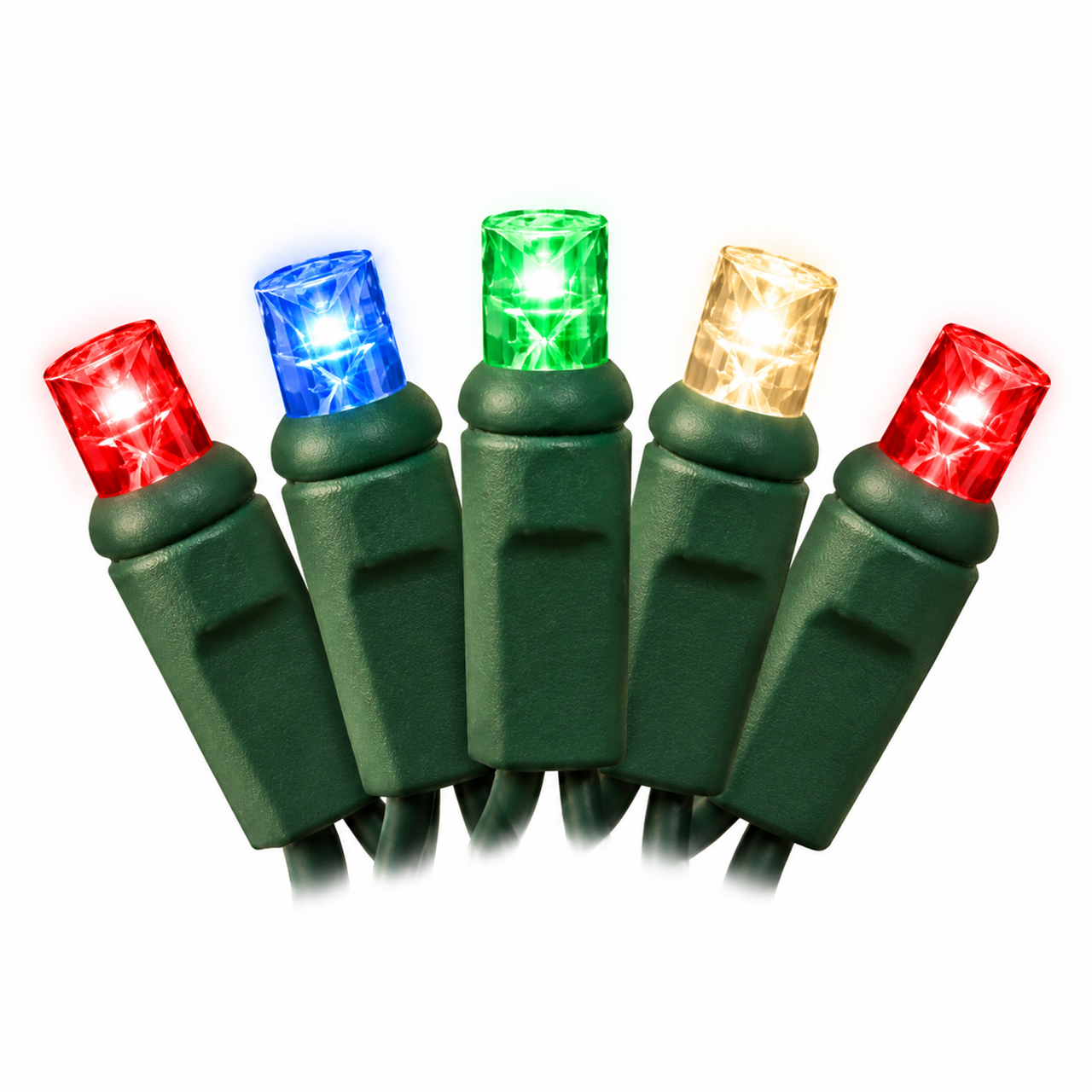

- 50 RGBWW LED Bulbs: Combines red, green, blue, and warm white LEDs in a single light set for flexible display options.
- Wide Angle 5mm Design: Four-inch bulb spacing provides broad, evenly distributed illumination.
- 16.5-Foot Lighted Length: Provides substantial coverage for trees, architectural accents, displays, and seasonal decorating.
- Connect Up to 35 Sets: Link multiple light sets together for larger installations.
- Indoor & Outdoor Rated: IP66 construction is designed for use in both indoor and outdoor applications.
- Long-Lasting LEDs: Rated for up to 50,000 hours lit or five outdoor seasons.
- Controller Operated: Requires the 100LEDWA504D-RGBWW Series Controller for operation and RGBWW control.
Usage Scenarios
- Christmas trees and greenery
- Rooflines and architectural accents
- Holiday and seasonal displays
- Commercial and retail decorating
- Event and entertainment lighting
The Wide Angle 5mm 50 RGBWW Light Set offers the versatility of RGB color with warm white LEDs in a single string, making it a flexible choice for custom lighting displays and seasonal installations.
